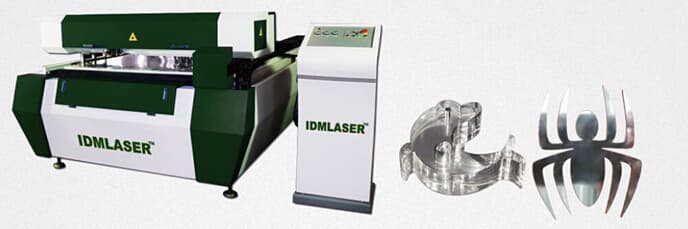

IDMLASER COOL200 CO2 Laser cutting machine and marking machine
Economical Metal & Non-Metal Laser Cutting Machine
2mm steel plate & 20mm acrylic, one machine!
IDMLASERTM COOL200 is a CO2 laser cutting machine. COOL200 is able to meet customers’ different requirements for sheet metal and nonmetal cutting, e.g.carbon steel, stainless steel, acrylic plates, die_making board, etc. With unique technical advantages and high performance against cost, COOL200 offers an economical laser cutting solution to customers. As the leading product in its sector, COOL200 features low operating cost, long service life and easy maintenance with 200W CO2 laser generator.
Cost Performance Advantages of COOL200 CNC laser cutting machine
| High performance improves production efficiency 1. 2mm steel plate/20mm acrylic, easily realize by one laser machine; 2. Lower requirements for technicians in debugging skills 3. Ideal supplement to high definition plasma cutting |
Overwhelming Cost Advantages 1. 10000 hours for quality cut and long service life of laser generator will largely lower the operating cost; 2. Patented technology of laser generator brings the cost thousands of dollor lower than the competitors; |
| Better Cutting Quality 1.Height control: automatic sensor height control system adapts to uneven surface of plates. The reaction speed of the sensor system is as high as 20000 mm/min, which ensures the whole cutting performance; 2. Japanese servo drive & motor and high precision screw driving system ensure the positioning accuracy of 0.05mm; |
Less Pollution, Less Damage High efficient fume exhaust collector is designed to prevent the pollution damage to optical circuit, ball screw, guide, etc. |
Improve Enterprise Competitiveness
Cost-effective Laser Cutting Application

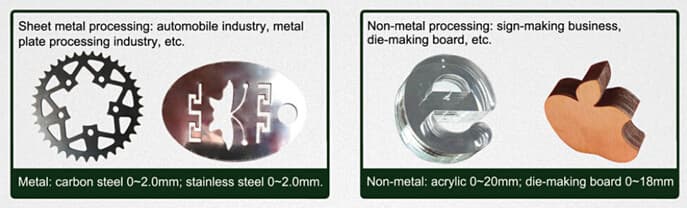

Sheet metal processing: automobile industry, metal plate processing industry, etc.;
Non-metal processing: sign-making business, die-making board, etc.;
Multifunction Laser Cutting Function
Major Configurations of COOL200 CNC laser cutting machine
| Item | Specification | Description |
| Stroke | 1250mm (X axis) x 2500mm (Y axis) | |
| Laser Power | 200W |
|
| Precision Screw Drive | Positioning accuracy | X/Y/Z axis |
| Servo Drive Motor | X/Y/Z axis, Mitsubishi & Panasonic | |
| Height Control | Specialized height control system for metal cutting | |
| Centralized Control Panel | Integrated switch of Air/E- stop/Test/Start/Pause, etc. | Directly control machine motion |
| Mirror | Plane mirror and focusing lens | Direct clean and easy change |
| Water-Cooling Machine | Low noise, low consumption and comprehensive surveillance |
Specialized water cooling system |
| Control System | Offline control unit and professional software for laser operation | Independent IPR |
| Fume Exhaust Collector | Downward fume exhausting | High efficient dust-removal |
| Blanking Collector | Collect cutting blanking (drawer) | Under the machine tool |
| Computer | At least P4; 256Mb Windows | Optional |
| Centrifugal Fan | 2.2KW, air-duct with interface size of Φ200 mm | Optional |
| Air Compressor | Air flow of 0.8m3, pressure of 8kg/min | Optional |
COOL200 CO2 laser cutting machine Technical Parameters
| Item | Technical Parameters |
| Input Voltage & Frequency | Single Phase 220V±10%, 50Hz |
| Input Power | 5000W |
| Effective Cutting Range | 1250mm (X axis)*2500mm (Y axis) |
| Z Axis Stroke | 60mm |
| Cutting Speed | 0~20000 mm/min |
| Repeatability | ±0.05mm |
| Overall Dimensions | 2130mm (width)*3600mm (length)*1400mm (height) |
| Cutting Mode |
Laser cutting |
| Laser Type | CO2 Laser Tube |
| Cutting Head | Auto-focusing cutting head |
| Height Control | Specialized height control system for metal cutting |
| Driving System | Precision screw and servo drive motor |
| Control System | Professional software for laser operation |
| Cooling Method of Laser Tube | Automatic water cooling (temperature auto-monitoring) |
| Cutting Materials | Carbon steel, stainless steel, acrylic, density board and die-making board, etc. |
| Cutting Thickness | Metal: carbon steel 0~2.0mm; stainless steel 0~2.0mm; Non-metal: acrylic 0~20mm; die-making board 0~18mm |
| Item | Technical Parameters |
| Input Voltage & Frequency | Single Phase 220V±10%, 50Hz |
| Input Power | 5000W |
| Effective Cutting Range | 1250mm (X axis)*2500mm (Y axis) |
| Z Axis Stroke | 60mm |
| Cutting Speed | 0~20000 mm/min |
| Repeatability | ±0.05mm |
