SteelTailor POWER-ET CNC plate metal cutting machine& plasma tube cutter technical parameters (parameters are for reference only)
| Power supply | 1.5KW,220V/110V,50HZ |
| Cutting mode | Flame or plasma |
| Effective cutting width | 1500mm |
| Effective cutting length | 3000mm（can be added to 6000mm） |
| Effective diameter cutting | Φ60mm-260mm（can be added to 600mm） |
| Moving speed | 0～4000mm/min |
| Cutting speed | 0～4000mm/min |
| Cutting thickness |
For tube cutting: Wall thickness:≤8mm For plate cutting: (Flame) 5 – 150 mm (Plasma) Depends on plasma power source |
| Torch lift distance | 100mm |
| Positioning precision | ±0.3mm/10M |
| Repeatability | ±0.4mm/10M |
| Cutting material type | Carbon steel\stainless steel\aluminum |
| Controller | SteelTailor (Controller integrated THC) |
| Cutting software |
FastCAM Prof. Portable. FreePIPE nesting software |
| Machine Support frame | Optional |
| Warranty | 1 year |

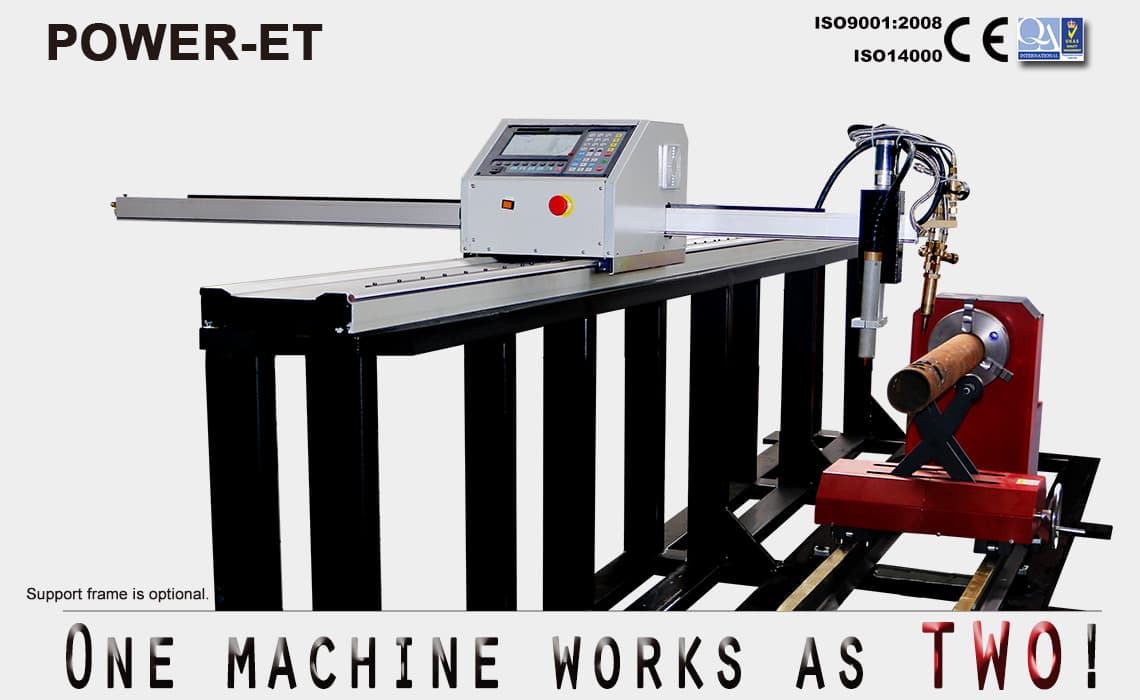

SteelTailorTM POWER-ET CNC plate metal cutting machine& plasma tube cutter
One machine works as two!Both for metal plate & tube cutting!Support plasma and flame cutting!Supports nesting! Two cutting software for free!

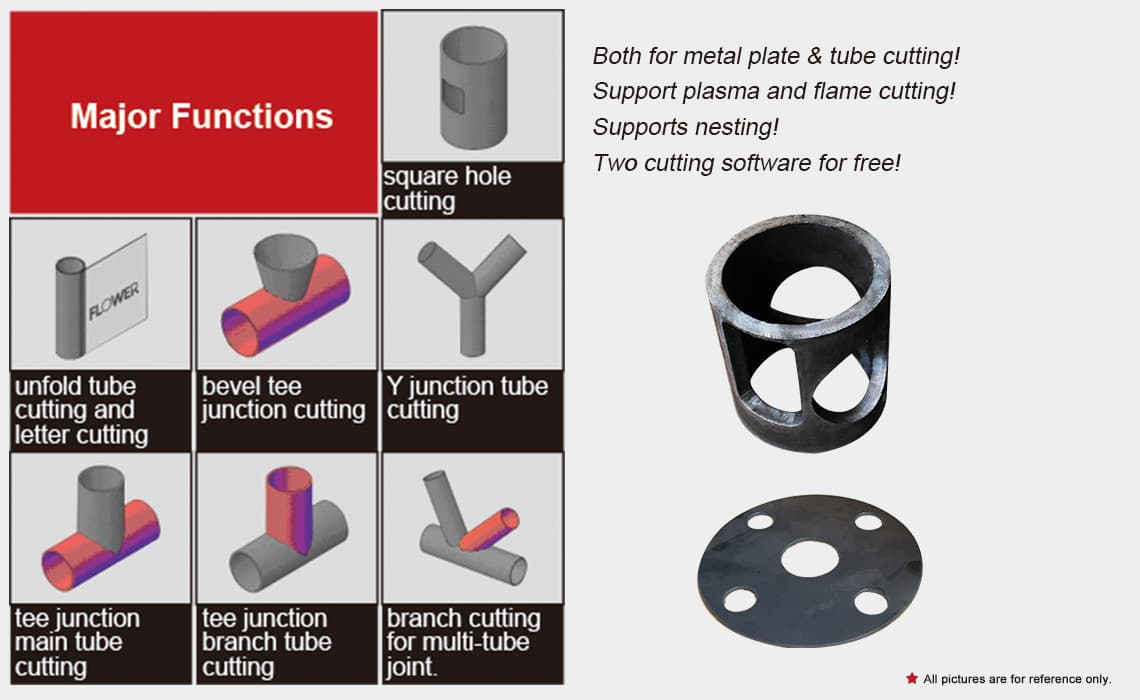

Major Functions：square hole cutting； unfold tube cutting and letter cutting；bevel tee junction cutting；Y junction tube cutting； tee junction main tube cutting；tee junction branch tube cutting； branch cutting for multi-tube joint.
SteelTailorTM POWER-ET CNC plate metal cutting machine& plasma tube cutter
POWER-ET is an economical, simple cnc plate and tube cutting machine. The advantage of POWER-ET is that it integrates horizontal, vertical, and rotary tube functions. At the same time, it is equipped with plane nesting software and tube nesting software. Both plane cutting and tube cutting can be performed using nesting software. The operation is very simple. Compared to traditional machines, POWER-ET improves work efficiency and saves time for you.
SteelTailorTM POWER-ET cnc plate metal cutting machine& plasma tube cutter

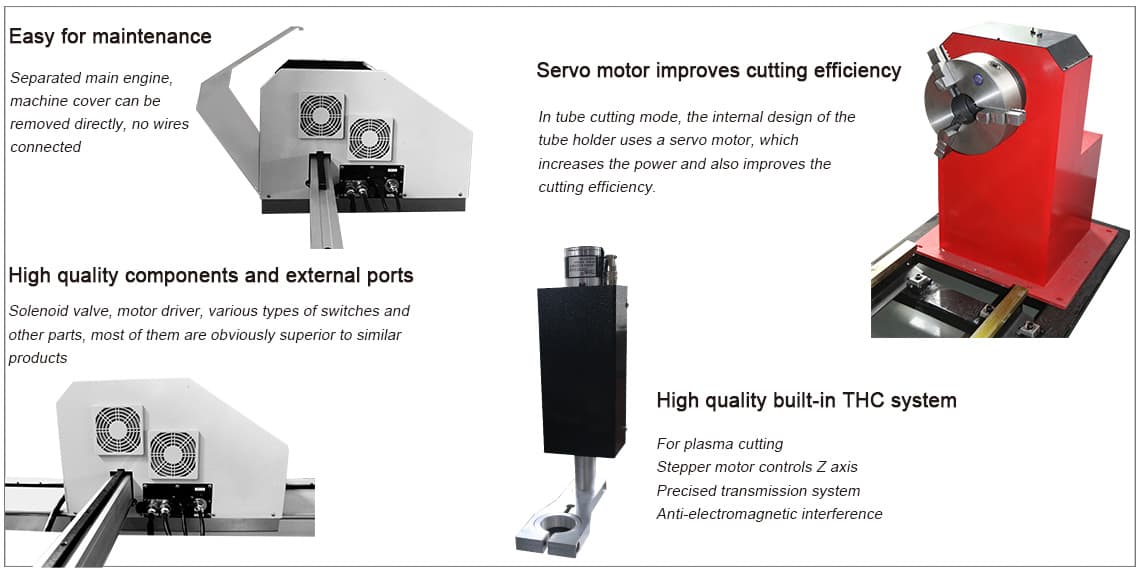

1. Easy for maintenance
Separated main engine, machine cover can be removed directly, no wires connected
2. High quality components and external ports
Solenoid valve, motor driver, various types of switches and other parts, most of them are obviously superior to similar products
3. Servo motor improves cutting efficiency
In tube cutting mode, the internal design of the tube holder uses a servo motor, which increases the power and also improves the cutting efficiency.
4. High quality built-in THC system
For plasma cutting; Stepper motor controls Z axis; Precised transmission system; Anti-electromagnetic interference
