Legend V (HD)plasma table cutting machine

Array

$0.00

High-performance table cutting machine that uses a modular design for easy function expansion.High quality for thin and thick metal plate cutting!
Optional 1: Mach 300A high-definition plasma cutter
Optional 2: CNC Drilling / Marking / Platen
Optional 3: Industrial PC controller

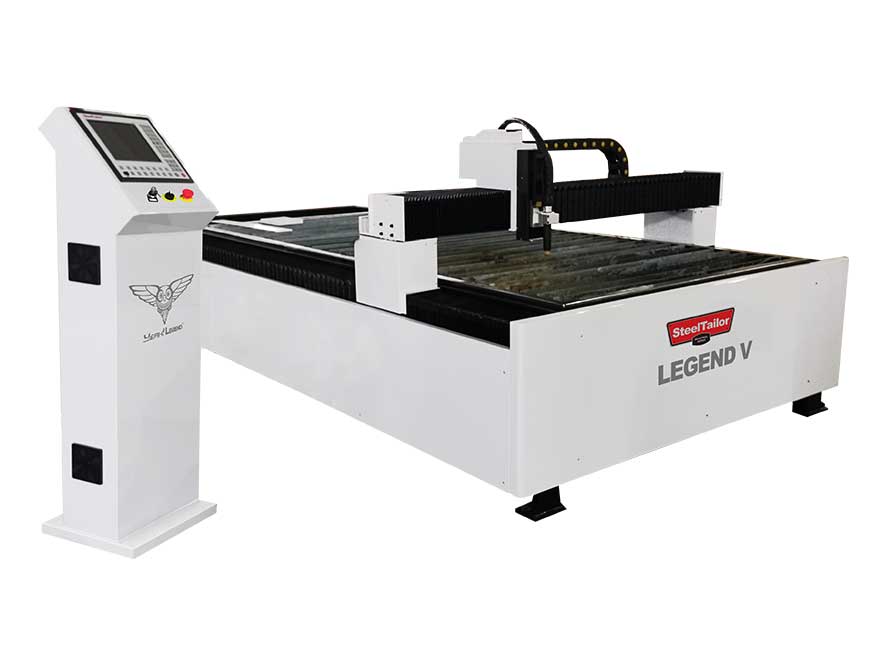

Legend V- CNC table plasma cutting machine

legend V cnc table plasma cutting machine

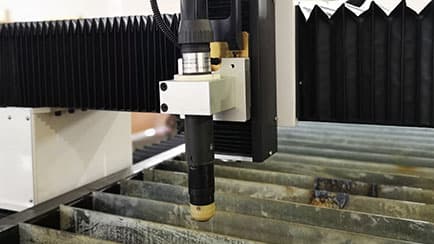

legend V cnc table plasma cutting machineAnti-collision device

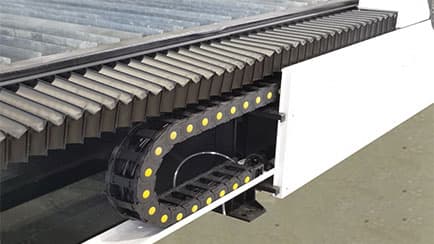

legend V cnc table plasma cutting machineTable with fully closed design.


Legend V CNC table plasma cutting machine can match with high plasma power source.
legend V cnc table plasma cutting machine

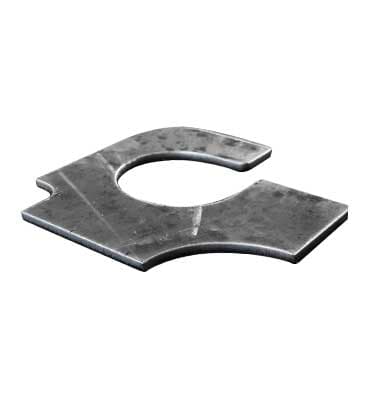

4mm cutting sample

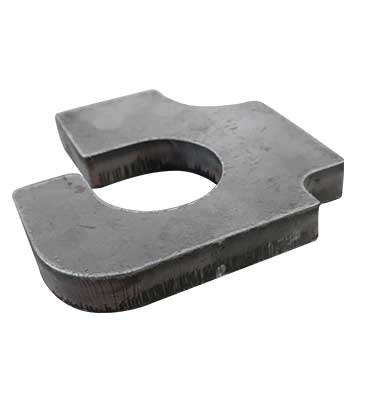

16mm cutting sample

 Technical parameters

 Model  Legend V
 Input voltage  220/110V
 Frequency  60/50 Hz
 Input power  800 W
 Display screen  LCD 10.3 ̋ color screen controller
 Effective X axis stroke  1500mm
 Effective Y axis stroke  3000mm
 Machine size  2160mm*4150mm
 Maximum running speed  18000 mm/min
 Maximum cutting speed  8000mm/min (platen cutting 8000, THC cutting 4500)
 Maximum Z axis stroke  115mm
 Cutting thickness  1-30mm
 Cutting speed  Depending on plasma power   source and the wall thickness of   the plate
 Cutting table type  Water table
 Repeatability  0.1mm
 Cutting mode  Plasma cutting
 Software  FastCAM Basic Version
 Machine color  Optional
