Solar Controller
Solar Controller

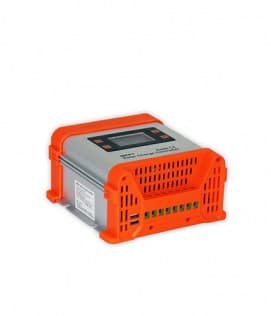

Professional Manufacturer MPPT 30A-50A 12V/24V/48V auto Portable Solar Controller Solar Panel Battery Regulator Charge Controller LCD Display

Array

$0.00

SOLARVERTECH MPPT portable solar controller (also known as an intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve

Professional Manufacturer MPPT 30A-50A 12V/24V/48V auto Portable Solar Controller Solar Panel Battery Regulator Charge Controller LCD Display





 Introduction:

SOLARVERTECH MPPT portable solar controller (also known as an intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. Our MPPT solar controllers 10A--80A include 12V series, 24V series and 48V series.

Features

  • Brand Name: SOLARVERTECH /OEM
  • 12V/24V/48V auto. work.
  • Multi-stage charging optimizes battery performance.
  • MPPT eficiency >99.7%,peak conversion efficiency 98.5%.

  • Wide range solar PV voltage input 17-120V DC.
  • Compatibe with GEL,AGM,Flooded,Sealed lead acid and lithium battery.
  • LCD display,system information intuitively.
  • Comprehensive protection.
  • Excellent heatsink cooling design,quiet operation.



Quick Details

  • MPPT48-50A Charger Controller
  • Work Time (h):1-24H
  • Max PV Power:According to the load
  • Max PV Voltage:48V
  • Certificate:CE RoHS ISO9001
  • Warranty:2 years,
  • Display:LCD Display
  • Certification:CE RoHS ISO9001
  • Battery type:Lead Acid
  • Material:Aluminum
  • Rated Current:50A
  • Efficiency:97.5%
  • Protection:Short Circuit
  • System voltage:12V/24V/48V



MPPT series Technical Parameters



Model

MPPT 12/24/48-50A

Solar system voltage

12/24 / 48V auto.work

PV operating voltage

24V 34-120V DC; 48V 68-120V DC

Max.PV input power

12V 650W;24V 1300W;48V 2600W

Rated output current

50A

Rated DC load current

50A

Max.conversion efficiency

97.50%

Protection

PV array short circuit, over charging, battery reverse polarity, output short circuit

Battery type

sealed, Gel, AGM, Flooded, Lithium battery

Charging algorithm

3 stage: Bulk, Absorption, Float

Bulk charge voltage

sealed 14.4V AGM 14.2V GEL: 14.2V Flooded 14.6V

Float charge voltage

sealed/Gel/AGM:13.8V, Flooded 13.7V

Equalize charge voltage

sealed 14.6V AGM: 14.8V, Flooded 14.9V

Warranty

two years
