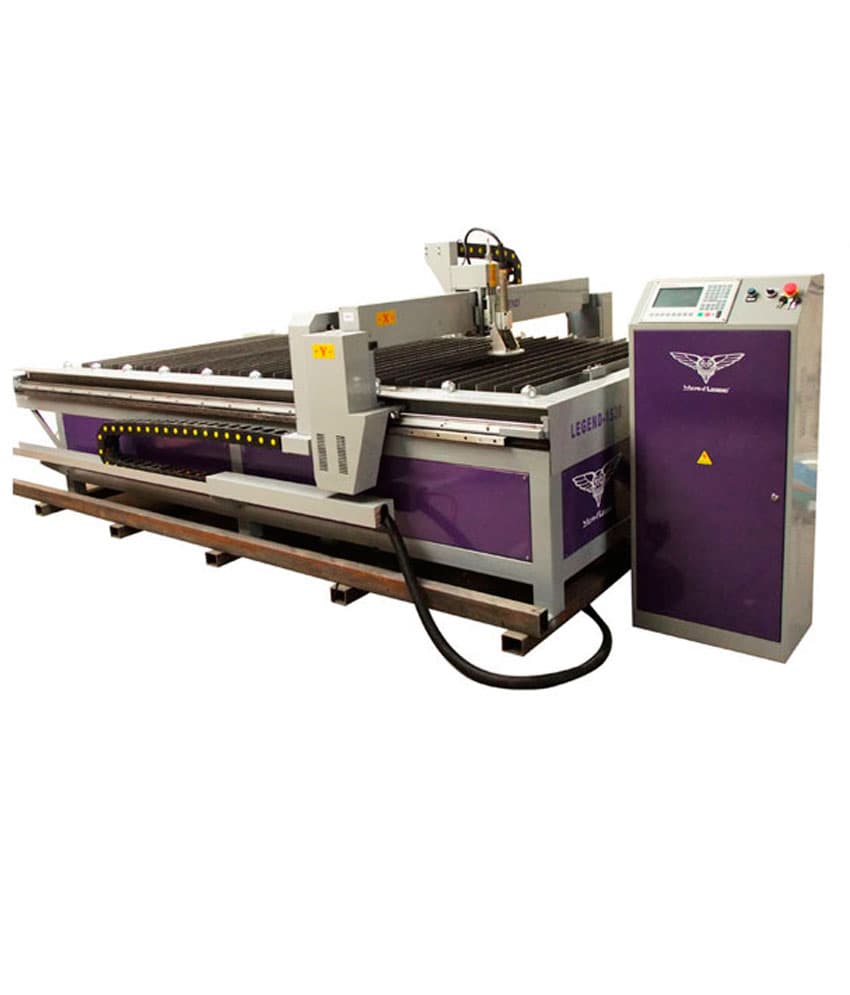

LegendB5 Economical table CNC plasma cutting machine

Array

$0.00

User friendly!
High quality cutting machine with long serving life.
Easy to operate.
Rigid steel structure;

 Legend B5 table plasma cutting machine Technical parameters

Type LEGEND B5
Input power 220V/110V
Power frequency 50HZ/60HZ
Power 1.0 KW
Cutting thickness 2~20mm (max:25mm)
Cutting speed 0~8000mm/min
Cutting range 1300mmx2500mm  1500mmx3000mm
Machine size 2030mm*2970mm*1220mm
2200mm*3700mm*1300mm
Processing material Carbon steel, Stainless steel,
Copper alloy, Nickel alloy,
Aluminum alloy
Controller Screen LCD 7”
Modes of cutting Plasma
Work mode of plasma Non-contact ignition
Cutting software BE cncCUT Basic version
FastCAM Standard version(optional)
Hypertherm Nest Master
Basic version (optional)


YEAH!LEGEND B5 Economical Table Plasma Cutting Machine

Economical table plasma cutting machine for medium-thick plate

  • Specially designed for the plate with thickness thinner than 22mm;
  • Light weight table structures, dual drives, stable and reliable;

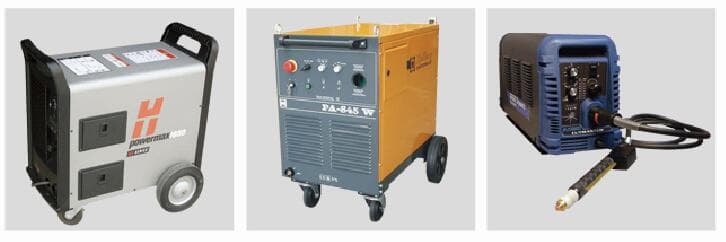

  • Portable THC, 100A plasma, the most economical solution for cutting;
  • IBE/ Hypertherm Nest Master, free with the machine!




  • Specially designed for the plate with thickness thinner than 22mm
Designed for the equipment with lower than 100A plasma power.Cutting arc of the plasma power with high power will damage the cutting table.




  • Reasonable selection, avoid performance surplus of some accessories

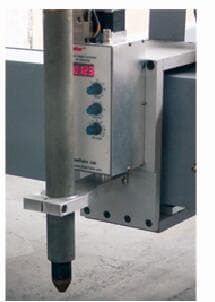

1.Portable THC(The third-generation THC system,900 sets or more have been sold)
2.Special CNC system(accepts G and M code. Compatible with the common cutting software such as IBE, Nest Master, FastCAM.)

  • Dual-drive step motors and high-precision guide;

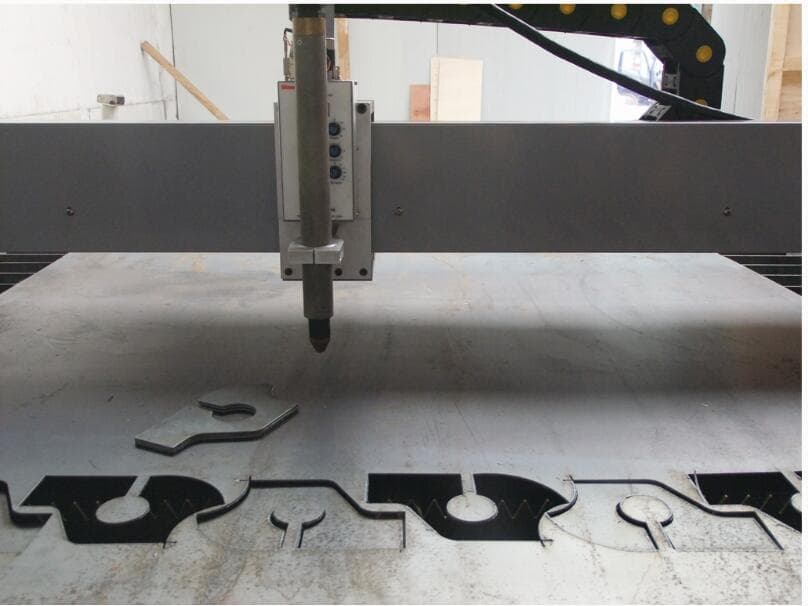

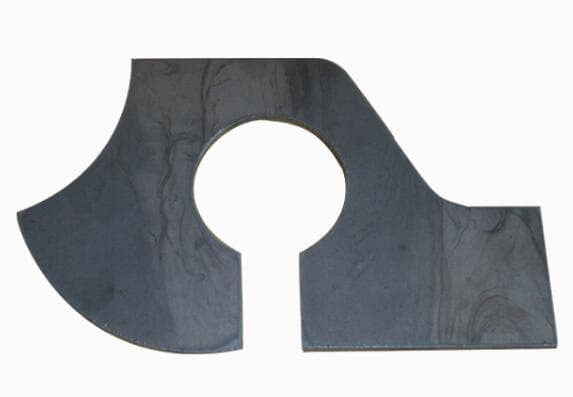

  • High Cutting Speed,small kerf, precise cutting, less cutting residue.
  • Easy to load and unload onto and from the cutting table


LegendB5 plasma cutting machine Summarize
LEGEND B5 is for small and medium processing industries which performs well to support thick plate cutting. It has a structural optimization by taking full account of the weight of 22mm steel the equipment can bear and destructive power of ARC the plasma cutting produced when machine is working. LEGEND B5 is equipped with a portable THC and special CNC system which enable LEGEND B5 to perform better and at the half price of traditional thick plate cutting machine. It provides the most competitive cutting solutions for medium-thick plate with 100A plasma power source.




2 Year warranty for all SteelTailor products (For machines made after Jan 1 2012)
