Smart II portable plasma cutting table



1.Portable plasma cutting table (1/6 traditional weight)
2.plasma cutter cnc table(1/2 traditional price)
3.Plasma CNC table performance beyond traditional one
4.Easy assembly, easy operation, easy maintenance
5.24 hours after service support.


SteelTailor SmartII  portable plasma cutting table machine

2. Smart II portable plasma cutting table machine VS Traditional plasma CNC table

  Traditional CNC Table SmartII Cutter CNC Table
Weight 1500KG 240KG
Assembly  difficult easy
Commissioning  difficult  easy
Precision 0.2mm 0.2mm
Performance  excellent  excellent
Longitudinal Drive type  single Dual drive
Maintenance difficult  easy

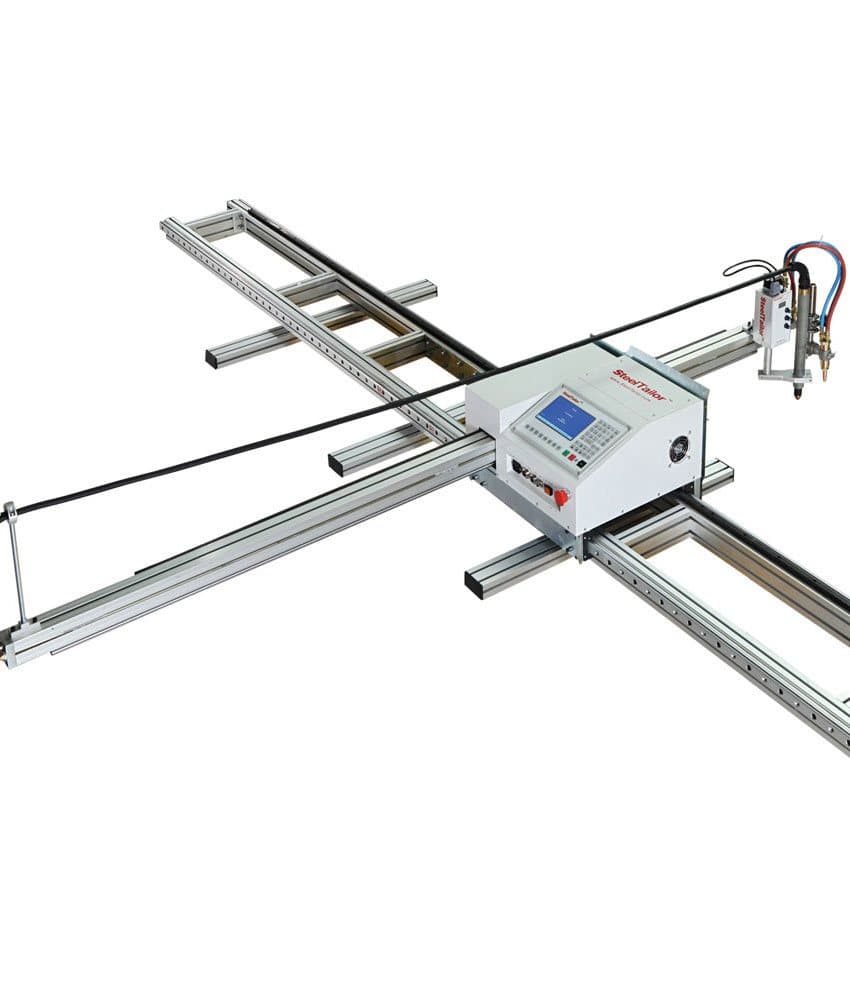

3.SmartⅡ---- Portable Table CNC Cutting Machines

SteelTailor, the leader of professional portable CNC machines, has launched a new series of products--SmartⅡ portable plasma cutting table machine.

Smart II is a revolution of traditional table CNC cutting machines. It is portable and economical. For less than 50% of the budget for a traditional table, you can have the state-of-art Smart II table!

Smart II is a machine you are going to love!

SmartⅡ VS Traditional Plasma Cutter CNC table Machines

  • Light and Smart;
  • Easy to set up and adjust;
  • Better cutting quality;
  • Higher precision and stability;

  • ​High cutting quality
  • High cutting speed
  • High stability

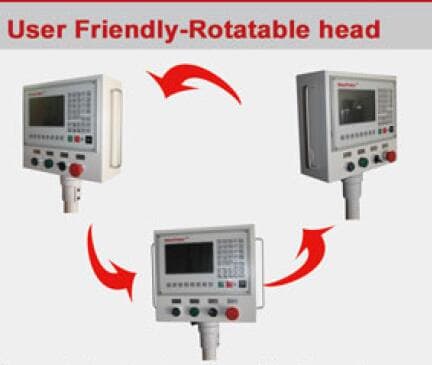

User Friendly-Rotatable head

The controller head can be rotated to make the user can handle machine in any direction.


Technical Parameter

Input voltage 110/220 V
Frequency 60/50 Hz
Rated power 200W
Effective cutting area X: 2500mm   Y: 1300mm
Cutting speed 0-6000 mm/min
MAX running speed 12000mm/min
Precision 0.2mm
Cutting thickness

Suggested table max load bearing: 20mm thickness steel.

If more load bearing requested, the table needs to be customized according to the order

Cross beam 2940mm
Longitudinal rack 1640mm
Cutting mode Plasma
Adjustment range/Z 80mm

IBE cncCUT Basic version

FastCAM Standard version (optional)

Nestting Professional version (optional)

Torch height control Automatic ARC voltage THC
Drive type Dual drive
